2710 / 27mm Single Extension |
Designed by LITOP |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Single |
Full |
Over |
Two-way |
Lock |
Self close |
In/out |
Bumper |
Stopper |
Download |
|
|
| Product Material |
| Material |
SPCC |
| Finished |
Zinc plated |
| T |
10.0mm±0.3 |
| W |
27.0mm±0.3 |
| Load |
15~20kg/set |
| Type |
Single extension slide |
| Standard |
250mm~550mm |
|
| |
|

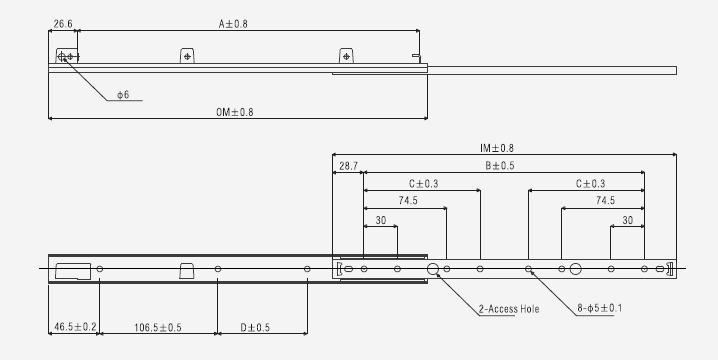

| OM:Out Member IM:Inner Member S:Strok |
| ITEM |
DRAWER |
OM |
IM |
A |
B |
C |
D |
| |
LENGTH |
mm |
mm |
mm |
mm |
mm |
mm |
| 261 |
260-350 |
261 |
246 |
227 |
188.6 |
- |
- |
| 286 |
280-400 |
286 |
254 |
252 |
196.6 |
- |
24.5 |
| 317 |
320-450 |
317 |
278 |
283 |
220.6 |
104.5 |
55.5 |
| 342 |
340-500 |
342 |
310 |
310 |
252.6 |
104.5 |
80.5 |
| 367 |
370-550 |
367 |
342 |
333 |
284.6 |
104.5 |
105.5 |
|
