2723 / 27mm Single Extension |
Designed by LITOP |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Single |
Full |
Over |
Two-way |
Lock |
Self close |
In/out |
Bumper |
Stopper |
Download |
|
|
| Product Material |
| |
Outer Memner(1.4t) |
SPCC |
| Material |
Inner Member(1.4t) |
SPCC |
| |
Retainer(0.5t) |
SECC |
| Finished |
Zinc galvanizing(Cr3) |
| Lubricating oil |
Epnoc AP |
| T |
9.5mm±0.3 |
| W |
27.0mm±0.3 |
| Load |
20~30kg/set |
| Type |
Single extension slide |
| Standard |
300mm~550mm |
|
| |
|

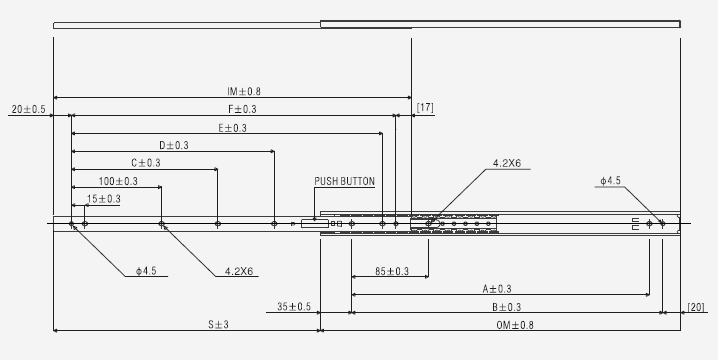

| OM:Out Member IM:Inner Member S:Strok |
| ITEM |
OM |
IM |
S |
A |
B |
C |
D |
E |
F |
| |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
| 30 |
300 |
297 |
221 |
230 |
245 |
150 |
- |
- |
- |
| 35 |
350 |
347 |
259 |
280 |
295 |
190 |
- |
- |
310 |
| 40 |
400 |
397 |
296 |
330 |
345 |
225 |
- |
345 |
360 |
| 45 |
450 |
447 |
333 |
380 |
395 |
225 |
- |
395 |
410 |
| 50 |
500 |
497 |
371 |
430 |
445 |
225 |
- |
445 |
460 |
| 55 |
550 |
547 |
408 |
480 |
495 |
225 |
337 |
495 |
510 |
|
