2730 / 27mm Full Extension |
Designed by LITOP |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Single |
Full |
Over |
Two-way |
Lock |
Self close |
In/out |
Bumper |
Stopper |
Download |
|
|
| Product Material |
| |
Outer Memner(1.4t) |
SPCC |
| Material |
Inner Member(1.4t) |
SPCC |
| |
Retainer(0.5t) |
SECC |
| Finished |
Zinc galvanizing(Cr3) |
| Lubricating oil |
Epnoc AP |
| T |
19.1mm±0.5 |
| W |
27.0mm±0.3 |
| Load |
20~40kg/set |
| Type |
Full extension slide |
| Standard |
200mm~500mm |
|
| |
|

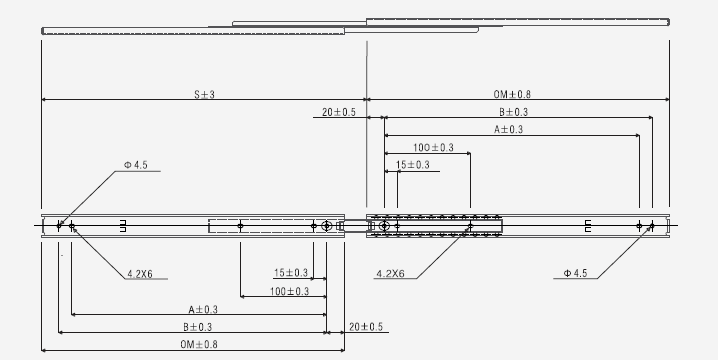

| OM:Out Member IM:Inner Member S:Strok |
| ITEM |
OM |
S |
A |
B |
| |
mm |
mm |
mm |
mm |
| 20 |
200 |
229 |
145 |
160 |
| 25 |
250 |
278 |
195 |
210 |
| 30 |
300 |
327 |
245 |
260 |
| 35 |
350 |
376 |
295 |
310 |
| 40 |
400 |
426 |
345 |
360 |
| 45 |
450 |
475 |
395 |
410 |
| 50 |
500 |
524 |
445 |
460 |
|
