3552 / 35mm Full Extension |
Designed by LITOP |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Single |
Full |
Over |
Two-way |
Lock |
Self close |
In/out |
Bumper |
Stopper |
Download |
|
|
| Product Material |
| |
Outer Memner(1.45t) |
SPCC |
| Material |
Inner Member(1.5t) |
SPCC |
| |
Retainer(0.6t) |
SECC |
| Finished |
Zinc galvanizing(Cr3) |
| Lubricating oil |
Epnoc AP |
| T |
19.1mm±0.5 |
| W |
35.3mm±0.3 |
| Load |
45~55kg/set |
| Type |
Full extension slide |
| Standard |
12"~20" |
|
| |
|

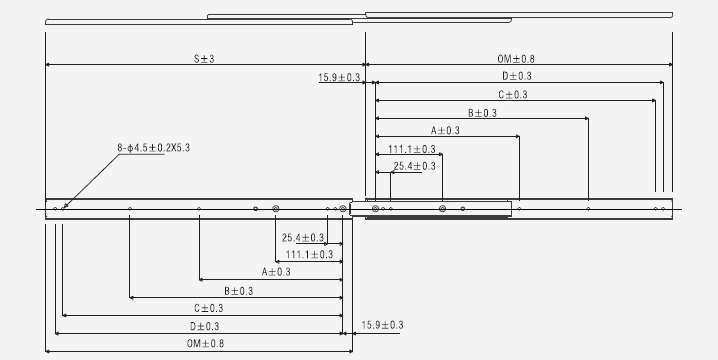

| OM:Out Member IM:Inner Member S:Strok |
| ITEM |
OM |
S |
A |
B |
C |
D |
| |
mm |
mm |
mm |
mm |
mm |
mm |
| 12 |
304.8 |
327.2 |
- |
149.2 |
260.4 |
273.0 |
| 14 |
355.6 |
378.0 |
- |
200.0 |
311.2 |
323.8 |
| 16 |
406.4 |
428.8 |
- |
250.8 |
362.0 |
374.6 |
| 18 |
457.2 |
479.6 |
212.7 |
301.6 |
412.8 |
425.4 |
| 20 |
508.0 |
530.4 |
238.1 |
352.4 |
463.6 |
476.2 |
| 22 |
588.8 |
581.2 |
263.5 |
403.2 |
514.4 |
527.1 |
|
