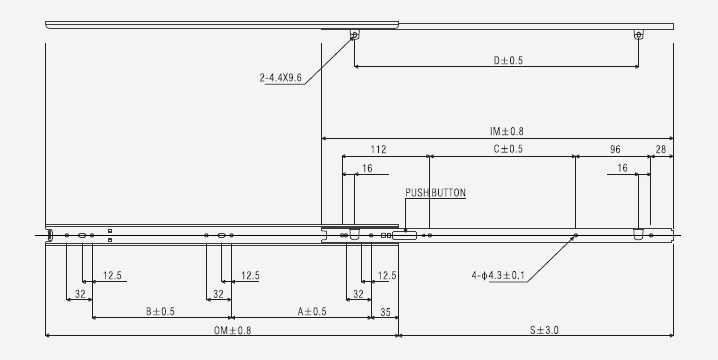

2715 / 27mm Single Extension Designed by LITOP   Single Full Over Two-way Lock Self close In/out Bumper Stopper Download   Product Material Material SPCC Finished Zinc plated T 10.0mm±0.3 W 27.0mm±0.3 Load 15~20kg/set Type Single extension slide Standard 250mm~500mm   OM:Out Member IM:Inner Member S:Strok ITEM DRAWER S OM IM A B C D   LENGTH mm mm mm mm mm mm mm 300 300 200 300 298 103 103 36 212 350 350 250 350 348 128 128 86 262 400 400 300 400 398 153 153 136 312 450 450 350 450 448 178 178 186 362 500 500 400 500 498 203 203 236 412
