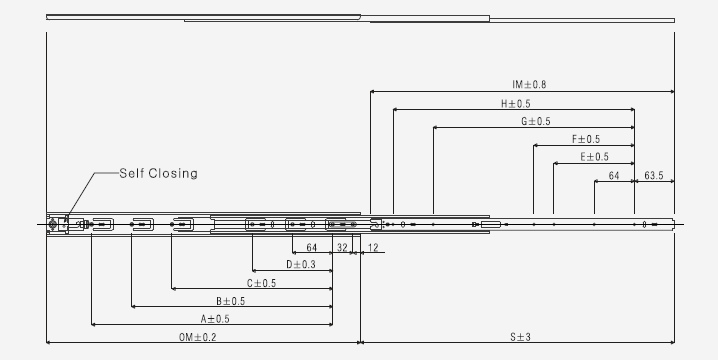

3731 / 37mm Full Extension Designed by LITOP   Single Full Over Two-way Lock Self close In/out Bumper Stopper Download   Product Material Material SPCC Finished Zinc plated T 12.7mm±0.3 W 37.0mm±0.3 Load 30~40kg/set Type Full extension slide Standard 300mm~550mm Self Closing   OM:Out Member IM:Inner Member S:Strok ITEM DRAWER S OM IM A B C D E F G H   LENGTH mm mm mm mm mm mm mm mm mm mm mm 300 300 300 300 282 176 - - - - - 120.5 184.5 350 350 350 350 332 224 - - - - - 170.5 234.5 400 400 400 400 382 256 192 - - 78 110 220.5 284.5 450 450 450 450 432 320 256 192 - 103 135 270.5 334.5 500 500 500 500 482 384 320 256 - 128 160 320.5 384.5 550 550 550 550 532 416 352 288 128 153 185 370.5 434.5
