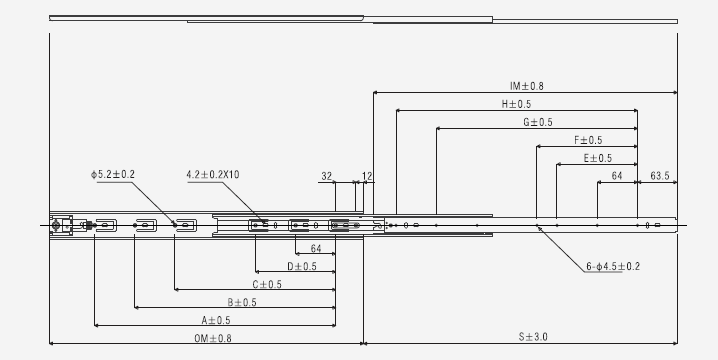

4531 / 45mm Full Extension Designed by LITOP   Single Full Over Two-way Lock Self close In/out Bumper Stopper Download   Product Material Material SPCC Finished Zinc plated T 13.0mm±0.3 W 45.4mm±0.3 Load 40~50kg/set Type Full extension slide Standard 300mm~550mm Self Closing   OM:Out Member IM:Inner Member S:Strok MODEL DRAWER S OM IM A B C D E F G H   LENGTH mm mm mm mm mm mm mm mm mm mm mm 4531-300 300 300 300 282 176 - - - - - 120.5 184.5 4531-350 350 350 350 332 224 - - - - - 170.5 234.5 4531-400 400 400 400 383 256 192 - - 78 110 220.5 284.5 4531-450 450 450 450 432 320 256 192 - 103 135 270.5 334.5 4531-500 500 500 500 483 384 320 256 - 128 160 320.5 384.5 4531-550 550 550 550 532 416 352 288 128 153 185 370.5 434.5
